CelCulture® CO₂ Incubator

分享到

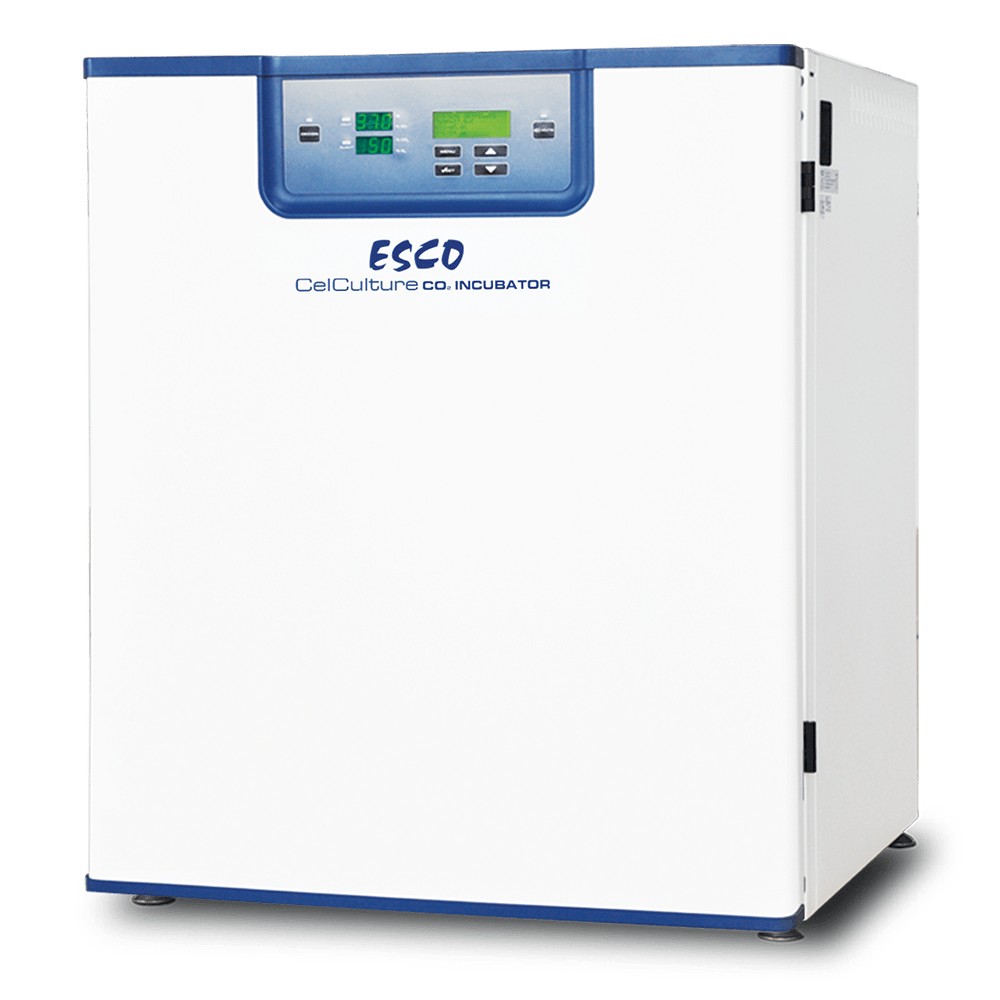

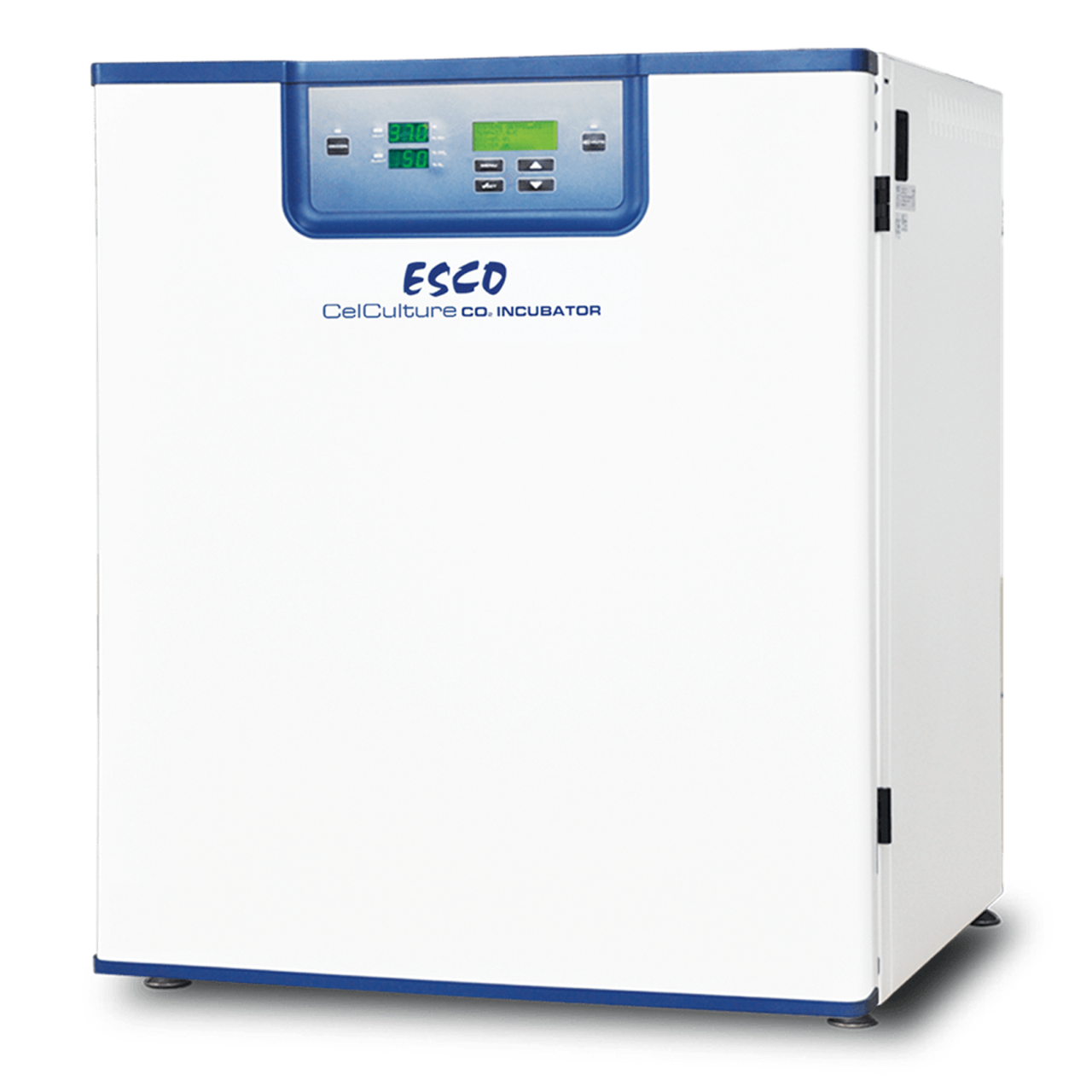

CelCulture® CO₂ Incubator


Box CO₂ incubators offering rapid temperature and gas recovery, ISO Class 5 cleanliness, ISOCIDE™ antimicrobial coating and an inner door kit to reduce contamination risk. The CelCulture® CO₂ Incubator is designed to replicate the natural environment for developing embryos by maintaining low levels of oxygen.



Fast temperature and gas recovery

  • Fast temperature and gas recovery time using sophisticated firmware and optimally located precision sensors to monitor and control temperature, CO2 and O2 levels inside the chamber.

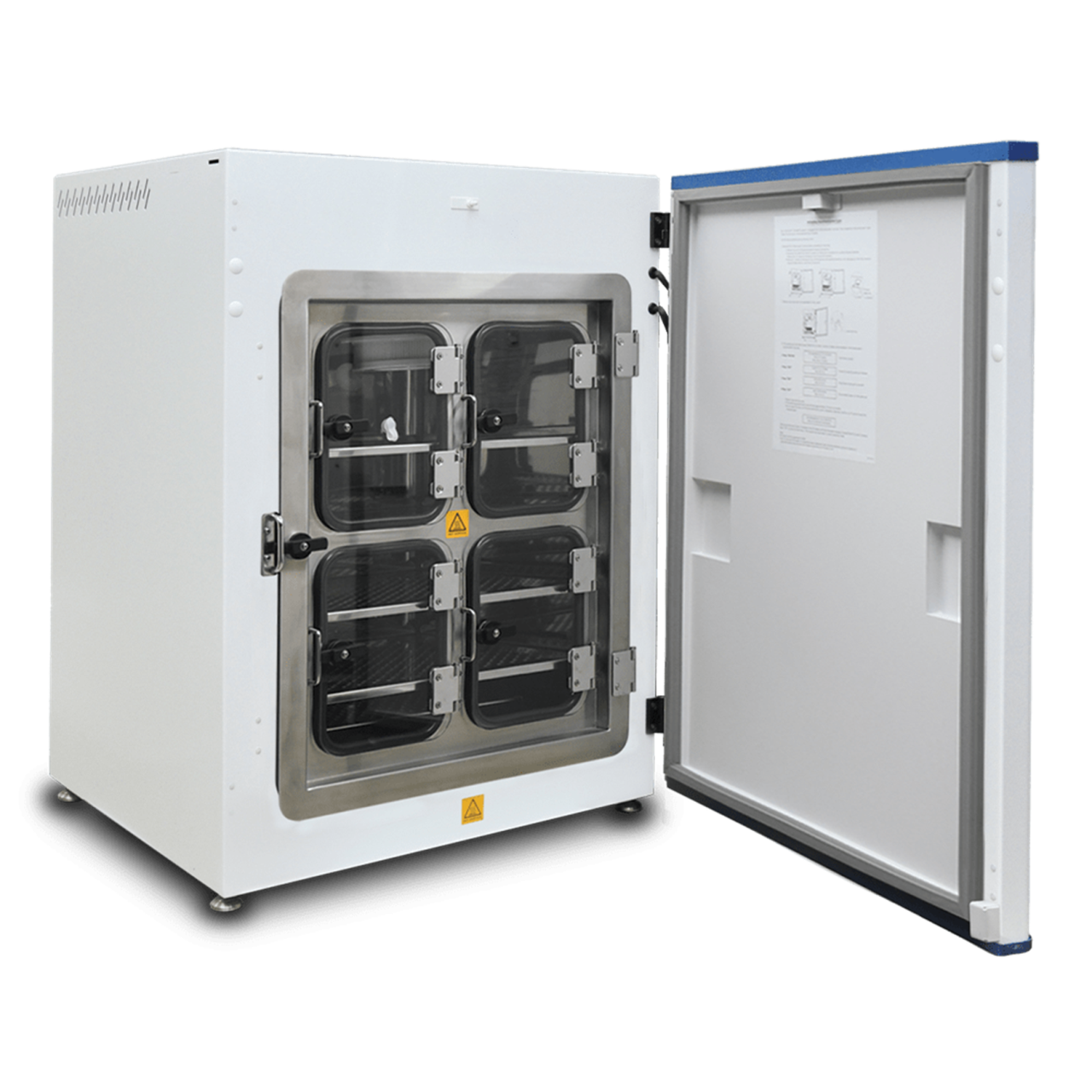

  • Inner Door Kit helps the fast recovery of parameters reduces contamination risk, with each section having a dedicated door panel

Maximum protection against harmful contaminants

  • 90°C moist heat decontamination cycle

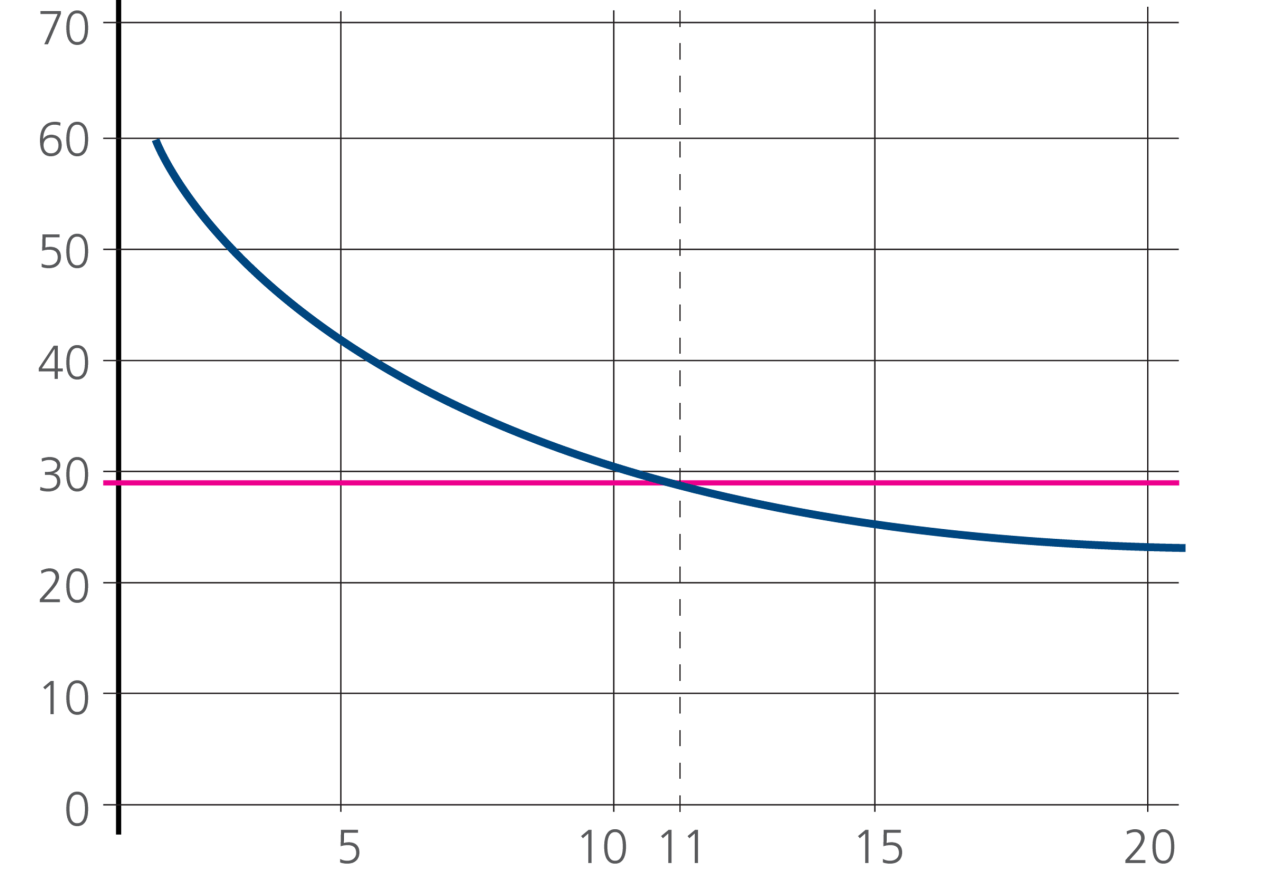

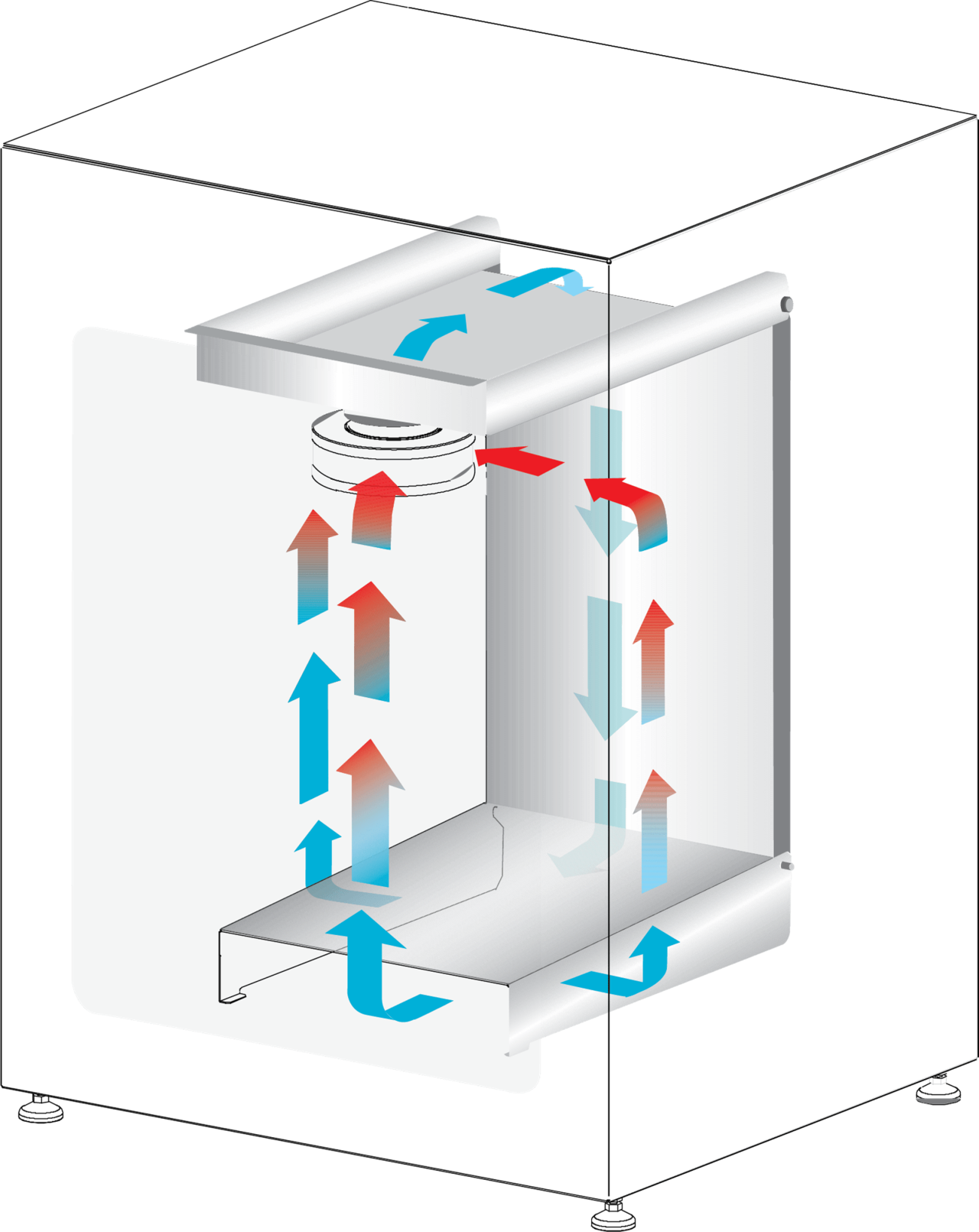

  • ULPA filter cleans the air so that chamber returns to ISO Class 5 cleanliness in 11 minutes upon door closing
  • ISOCIDE™ antimicrobial coating

Different capacity models available

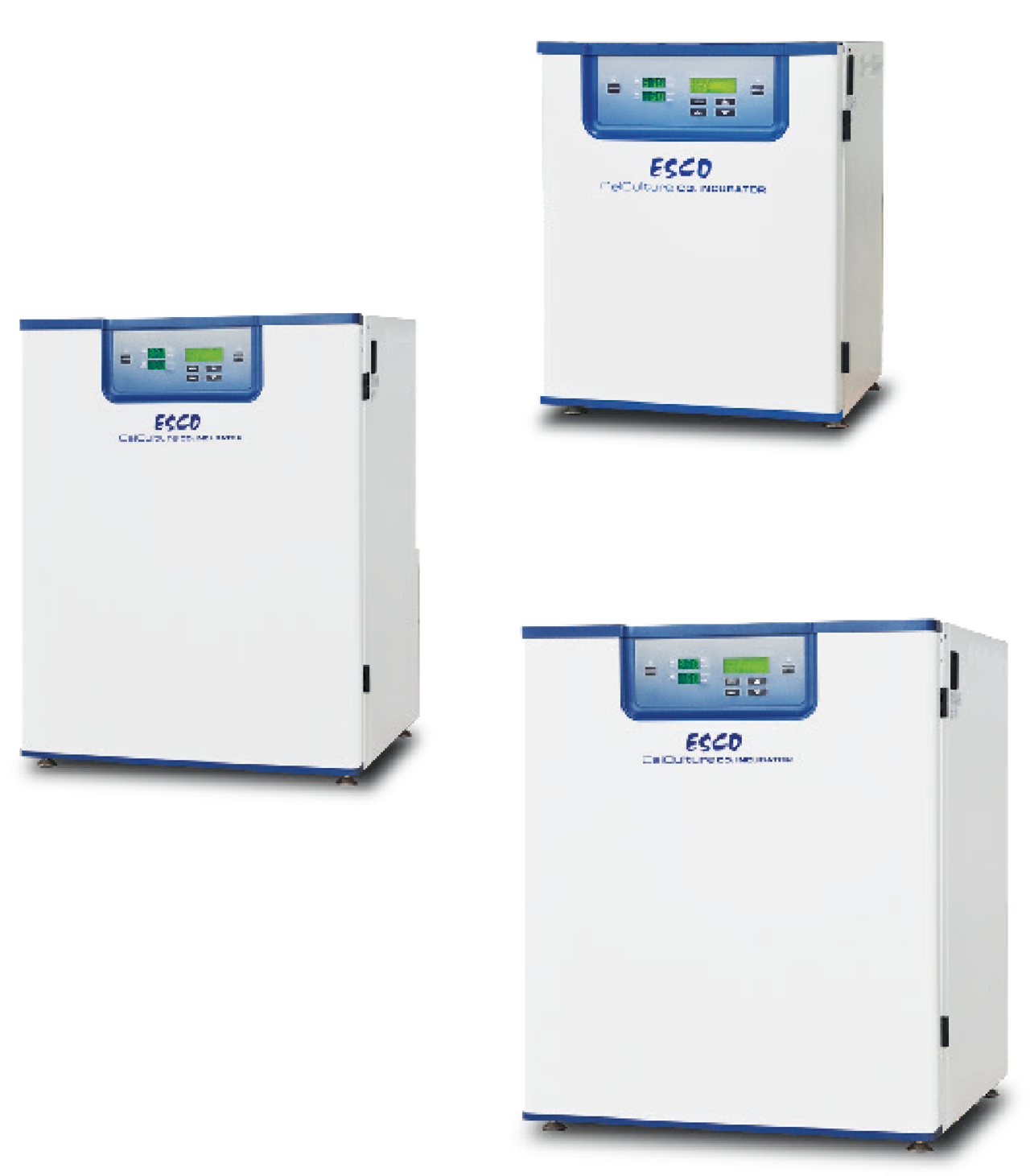

Capacity models to suit different needs: 50 L model with 2 sections; 170 L model with 4 sections; 240 L model with 4 or 6 sections

Order Information

CelCulture® CO₂ Incubator

Item Code

Model Code

Description

IR Sensor Model with Stainless Steel Chamber

2170257

CCL-050B-8-IVF

Celculture® Incubator, 50L, IR sensor, CO₂ control, Moist Heat Decon, with Sealed Inner Door Kit for 50L
(2 Glass Doors With Latches), Factory Installed, 230VAC, 50/60 Hz

2170272

CCL-170B-8-IVF

CelCulture® Incubator 170L IR Sensor, CO₂ Control ULPA, Moist Heat Decon, with Sealed Inner Door Kit for 170L
(4 Glass Doors With Latches), Factory Installed, 230VAC 50/60Hz

2170278

CCL-240B-8-IVF

CelCulture® Incubator 240L IR Sensor CO₂ Control, ULPA, Moist Heat Decon, with Sealed Inner Door Kit for 240L
(4/6 Glass Doors With Latches), Factory Installed, 230VAC 50/60Hz

2170258

CCL-050B-9-IVF

Celculture® Incubator, 50L, IR sensor, CO₂ control, Moist Heat Decon, with Sealed Inner Door Kit for 50L
(2 Glass Doors With Latches), Factory Installed, 115VAC, 50/60 Hz

2170273

CCL-170B-9-IVF

CelCulture® Incubator 170L IR Sensor, CO₂ Control ULPA, Moist Heat Decon, with Sealed Inner Door Kit for 170L
(4 Glass Doors With Latches), Factory Installed, 115VAC 50/60Hz

2170279

CCL-240B-9-IVF

CelCulture® Incubator 240 L, IR Sensor, CO₂ Control, ULPA, Moist Heat Decon, with Sealed Inner Door Kit for 240L
(4/6 Glass Doors With Latches), 115 VAC, 50/60 Hz

Supressed O2 Model with Stainless Steel Chamber

2170260

CCL-050T-8-IVF

Celculture® Incubator, 50L, IR sensor, CO₂ & O₂ control, Moist Heat Decon, with Sealed Inner Door Kit for 50L
(2 Glass Doors With Latches), Factory Installed, 230VAC, 50/60 Hz

2170275

CCL-170T-8-IVF

CelCulture® Incubator 170L IR Sensor, CO₂ & O₂ Control ULPA, Moist Heat Decon, with Sealed Inner Door Kit for 170L
(4 Glass Doors With Latches), Factory Installed, 230VAC 50/60Hz

2170281

CCL-240T-8-IVF

Celculture® Incubator, 240L, IR sensor, CO₂ & O₂ control ULPA, with Sealed Inner Door Kit for 240L
(4/6 Glass Doors With Latches), Factory Installed, 230VAC 50/60Hz

2170261

CCL-050T-9-IVF

Celculture® Incubator, 50L, IR sensor, CO₂ & O₂ control, Moist Heat Decon, with Sealed Inner Door Kit for 50L
(2 Glass Doors With Latches), Factory Installed, 115VAC, 50/60 Hz

2170276

CCL-170T-9-IVF

CelCulture® Incubator 170L IR Sensor, CO₂ & O₂ Control ULPA, Moist Heat Decon, with Sealed Inner Door Kit for 170L
(4 Glass Doors With Latches), Factory Installed, 115VAC 50/60Hz

2170282

CCL-240T-9-IVF

Celculture® Incubator, 240L, IR sensor, CO₂ & o₂ control ULPA, with Sealed Inner Door Kit for 240L
(4/6 Glass Doors With Latches), Factory Installed, 115VAC 50/60Hz



Accessories

Item Code

Model Code

Description

5170470

COA-1001

Humidity Display, Factory-installed

5170471

COA-1001-F

Humidity Display, Field-installed Kit

5170472

COA-1002

CO2 Backup (Tank Switcher), Factory-installed

5170473

COA-1002-F

CO2 Backup (Tank Switcher), Field-installed

5170474

COA-1004

Reversed Door Swing, Factory-installed

5170475

COA-1005

Analog Outputs, Factory-installed

5170476

COA-1005-F

Analog Outputs, Field-installed

5170490

COA-1007

N2 Back-up (Tank Switcher), Factory-installed

5170491

COA-1007-F

N2 Back-up (Tank Switcher), Field-installed

5170419

COA-2018-F

Roller Base (50 L)

5170478

COA-2001-F

Roller Base (170 L)

5170420

COA-2019-F

Roller Base (240 L)

5170421

COA-2020-F

Floor Stand 200 mm (8.0”) with Adjustable Feet (50 L)

5170479

COA-2002-F

Floor Stand 200 mm (8.0") with Adjustable Feet (170 L)

5170422

COA-2021-F

Floor Stand 200 mm (8.0”) with Adjustable Feet (240 L)

5170423

COA-2022-F

Floor Stand 700 mm (27.6")  with Casters (50 L)

5170480

COA-2003-F

Floor Stand 700 mm (27.6") with Casters (170 L)

5170424

COA-2023-F

Floor Stand 700 mm (27.6”) with Casters (240 L)

5170489

COA-2004-F

2-units Floor Stand Stacking Kit (For 170L)

5170999

COA-2042-F

2-units Floor Stand Stacking Kit (for 240L)

5170481

COA-2005-F

2-Stage Gas Regulator for CO₂  / N2
Choose one of the connectors below:
1080588 - CGA 320 Connector (US standard)
1080589 - BP-BS34-#8-NT4 Connector (British standard)
1080590 - G5/8-RH Connector (China standard)

5170425

COA-2024-F

Extra Shelf (50 L, stainless steel)

5170327

COA-2007-F

Extra Shelf (170 L, stainless steel)

5170426

COA-2025-F

Extra Shelf (240 L, stainless steel)

5170483

COA-2008-F

Stacking Kit (one set included with every unit purchased)

5170329

COA-2010-F

Electronic CO₂ Analyzer, For CO₂ / Temp Measurement (with Temperature Probe)

5170397

COA-2016-F

Electronic CO₂ + O₂ Analyzer, For CO₂ / O₂ / Temperature Measurement

5170398

COA-2017-F

Electronic CO2 + O2 + RH Analyzer, For CO2 / O2 / RH /  Temperature Measurement

2170020

COA-2011-F

IQ / OQ Documentation

2170021

COA-2012-F

6" Chart Recorder, Temp, 115/230 VAC, 50/60 Hz

2170022

COA-2013-F

8" Chart Recorder, Temp / Temp, 115/230 VAC, 50/60 Hz

2170023

COA-2014-F

6" Chart Recorder, Temp/RH, 115/230 VAC, 50/60 Hz

5170487

COA-2015-F

Inner Door Shelving Kit for 170 L (4 sets with total 12 mini-shelves for one incubator)

5250001

Voyager®

Voyager® Software Kit

1320045

MRI-GA

MIRI® GA CO2 / O2 / Temp Validation Unit, 115 -230 VAC, 50/60 Hz

1250109

MRA-SS-TS

SAFE Sens TrackStation for CO₂ Incubator (to be sold with 1250110). Can connect up to 8 incubators.

1250110

MRA-SS-TP

SAFE Sens TrackPod for CO₂ Incubator (to be sold with 1250109)

1081277

MRA-SS-SV2

SAFE Sens SV2 Sensor, Pack of 10 pieces (shelf-life 12 months)

1081278

MRA-SS-QC2

SAFE Sens QC2 Alignment Tool
