SPERMATID INJECTION PIPETTES(顯微精子注射針)

• 顯微精子注射針是 ICSI 顯微注射針的較大版本。
• 提供 2 種不同尖端角度的尺寸。
• 顯微精子注射針只有尖頭款式。

分享到

商品特色

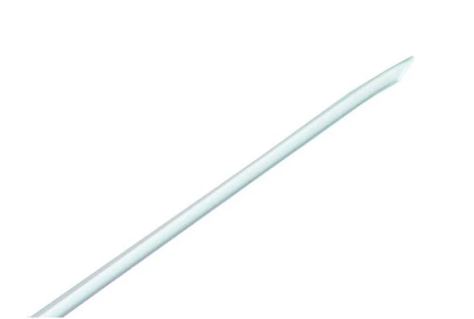

SPERMATID INJECTION PIPETTES

Spermatid injection pipettes are larger versions of the ICSI pipette.
Available in 2 sizes with varying tip angles.
Pipettes only come with a spiked tip style.

PRODUCT	CATALOG NUMBER	FINISH STYLE	INNER DIAMETER	OUTER DIAMETER	TIP ANGLE	TOE LENGTH
Spermatid Injection Pipettes	SIC-70W-00	Spiked	6.5-7.5 µm	8-9 µm	n/a	n/a
Spermatid Injection Pipettes	SIC-70W-05	Spiked	6.5-7.5 µm	8-9 µm	5°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-10	Spiked	6.5-7.5 µm	8-9 µm	10°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-15	Spiked	6.5-7.5 µm	8-9 µm	15°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-20	Spiked	6.5-7.5 µm	8-9 µm	20°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-25	Spiked	6.5-7.5 µm	8-9 µm	25°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-30	Spiked	6.5-7.5 µm	8-9 µm	30°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-35	Spiked	6.5-7.5 µm	8-9 µm	35°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-40	Spiked	6.5-7.5 µm	8-9 µm	40°	0.55 mm
Spermatid Injection Pipettes	SIC-70W-45	Spiked	6.5-7.5 µm	8-9 µm	45°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-00	Spiked	7.5-9.5 µm	10-11 µm	n/a	n/a
Spermatid Injection Pipettes	SIC-90W-05	Spiked	7.5-9.5 µm	10-11 µm	5°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-10	Spiked	7.5-9.5 µm	10-11 µm	10°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-15	Spiked	7.5-9.5 µm	10-11 µm	15°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-20	Spiked	7.5-9.5 µm	10-11 µm	20°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-25	Spiked	7.5-9.5 µm	10-11 µm	25°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-30	Spiked	7.5-9.5 µm	10-11 µm	30°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-35	Spiked	7.5-9.5 µm	10-11 µm	35°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-40	Spiked	7.5-9.5 µm	10-11 µm	40°	0.55 mm
Spermatid Injection Pipettes	SIC-90W-45	Spiked	7.5-9.5 µm	10-11 µm	45°	0.55 mm
