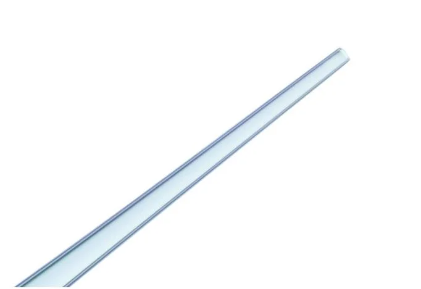

ZONA DRILLING PIPETTES
• Zona drilling pipettes are used to apply acidic solutions for creating a hole on the zona pellucida to enable assisted hatching and/or embryo biopsy.
• These come in 2 sizes with varying tip angles.
|
PRODUCT
|
CATALOG NUMBER
|
FINISH STYLE
|
INNER DIAMETER
|
OUTER DIAMETER
|
TIP ANGLE
|
TOE LENGTH
|
|
Zona Drilling Pipettes
|
SZD-10-00
|
n/a
|
8-10 µm
|
10-12 µm
|
n/a
|
n/a
|
|
Zona Drilling Pipettes
|
SZD-10-05
|
n/a
|
8-10 µm
|
10-12 µm
|
5°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-10
|
n/a
|
8-10 µm
|
10-12 µm
|
10°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-15
|
n/a
|
8-10 µm
|
10-12 µm
|
15°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-20
|
n/a
|
8-10 µm
|
10-12 µm
|
20°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-25
|
n/a
|
8-10 µm
|
10-12 µm
|
25°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-30
|
n/a
|
8-10 µm
|
10-12 µm
|
30°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-35
|
n/a
|
8-10 µm
|
10-12 µm
|
35°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-40
|
n/a
|
8-10 µm
|
10-12 µm
|
40°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-10-45
|
n/a
|
8-10 µm
|
10-12 µm
|
45°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-00
|
n/a
|
10-12 µm
|
12-14 µm
|
n/a
|
n/a
|
|
Zona Drilling Pipettes
|
SZD-12-05
|
n/a
|
10-12 µm
|
12-14 µm
|
5°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-10
|
n/a
|
10-12 µm
|
12-14 µm
|
10°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-15
|
n/a
|
10-12 µm
|
12-14 µm
|
15°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-20
|
n/a
|
10-12 µm
|
12-14 µm
|
20°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-25
|
n/a
|
10-12 µm
|
12-14 µm
|
25°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-30
|
n/a
|
10-12 µm
|
12-14 µm
|
30°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-35
|
n/a
|
10-12 µm
|
12-14 µm
|
35°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-40
|
n/a
|
10-12 µm
|
12-14 µm
|
40°
|
0.55 mm
|
|
Zona Drilling Pipettes
|
SZD-12-45
|
n/a
|
10-12 µm
|
12-14 µm
|
45°
|
0.55 mm
|
